TBTAbstractConnectionFactory Class Reference

A ConnectionFactory is used for creating Connections. More...

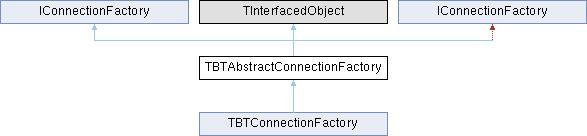

Inheritance diagram for TBTAbstractConnectionFactory:

Public Member Functions
	TBTAbstractConnectionFactory ()
	TBTAbstractConnectionFactory (const string BrokerURL)
	TBTAbstractConnectionFactory (const string UserName, const string Password, const string BrokerURL)
TBTConnection	CreateMQConnection ()
	Creates a connection with the default user identity.
TBTConnection	CreateMQConnection (const string UserName, const string Password)
	Creates a connection with the specified user identity.
IConnection	CreateConnection ()
	Creates a connection with the default user identity.
IConnection	CreateConnection (const string UserName, const string Password)
	Creates a connection with the specified user identity.
IMQContext	CreateContext ()
IMQContext	CreateContext (const TAcknowledgementMode AcknowledgeMode)
IMQContext	CreateContext (const string Username, const string Password)
IMQContext	CreateContext (const string Username, const string Password, const TAcknowledgementMode AcknowledgeMode)
IClientLibraryInfo	ClientLibraryInfo ()
	Returns the client library information.

Public Attributes
string	ClientID
	The clientID to use for the created connection.
Integer	ConnectTimeOut
	Connect time out (in milliseconds)
string	UserName
	The userName used by connections created by this factory.
string	Password
	The password used for connections created from this factory.
string	BrokerURL
	The connection URL used to connect to the broker.
Integer	SendTimeOut
	Send time out.

Protected Member Functions
TBTAbstractTransport	CreateTransport ()

Detailed Description

A ConnectionFactory is used for creating Connections.

A ConnectionFactory object encapsulates a set of connection configuration parameters that has been defined by an administrator.

A client uses it to create a connection with a provider.

Constructor & Destructor Documentation

TBTAbstractConnectionFactory() [1/3]

TBTAbstractConnectionFactory::TBTAbstractConnectionFactory

(

)

TBTAbstractConnectionFactory() [2/3]

TBTAbstractConnectionFactory::TBTAbstractConnectionFactory

(

const string

BrokerURL

)

TBTAbstractConnectionFactory() [3/3]

TBTAbstractConnectionFactory::TBTAbstractConnectionFactory	(	const string	UserName,
		const string	Password,
		const string	BrokerURL )

Member Function Documentation

ClientLibraryInfo()

IClientLibraryInfo TBTAbstractConnectionFactory::ClientLibraryInfo

(

)

Returns the client library information.

CreateConnection() [1/2]

IConnection TBTAbstractConnectionFactory::CreateConnection

(

)

Creates a connection with the default user identity.

The connection is created in stopped mode. No messages will be delivered until the Connection.Start method is explicitly called.

CreateConnection() [2/2]

IConnection TBTAbstractConnectionFactory::CreateConnection	(	const string	UserName,
		const string	Password )

Creates a connection with the specified user identity.

The connection is reated in stopped mode. No messages will be delivered until the Connection.Start method is explicitly called.

CreateContext() [1/4]

IMQContext TBTAbstractConnectionFactory::CreateContext

(

)

CreateContext() [2/4]

IMQContext TBTAbstractConnectionFactory::CreateContext	(	const string	Username,
		const string	Password )

CreateContext() [3/4]

IMQContext TBTAbstractConnectionFactory::CreateContext	(	const string	Username,
		const string	Password,
		const TAcknowledgementMode	AcknowledgeMode )

CreateContext() [4/4]

IMQContext TBTAbstractConnectionFactory::CreateContext

(

const TAcknowledgementMode

AcknowledgeMode

)

CreateMQConnection() [1/2]

TBTConnection TBTAbstractConnectionFactory::CreateMQConnection

(

)

Creates a connection with the default user identity.

The connection is created in stopped mode. No messages will be delivered until the Connection.Start method is explicitly called.

CreateMQConnection() [2/2]

TBTConnection TBTAbstractConnectionFactory::CreateMQConnection	(	const string	UserName,
		const string	Password )

Creates a connection with the specified user identity.

The connection is created in stopped mode. No messages will be delivered until the Connection.Start method is explicitly called.

CreateTransport()

TBTAbstractTransport TBTAbstractConnectionFactory::CreateTransport ( )

protected

Member Data Documentation

BrokerURL

string TBTAbstractConnectionFactory::BrokerURL

The connection URL used to connect to the broker.

See also

GetBrokerURL For reading

SetBrokerURL For writing

ClientID

string TBTAbstractConnectionFactory::ClientID

The clientID to use for the created connection.

Note that this can only be used by one connection at once so generally its a better idea to set the clientID on a Connection.

See also

FClientID For reading

FClientID For writing

ConnectTimeOut

Integer TBTAbstractConnectionFactory::ConnectTimeOut

Connect time out (in milliseconds)

Note

Experimental feature. Implemented in Internet Direct (Indy) only.

See also

FConnectTimeOut For reading

SetConnectTimeOut For writing

Password

string TBTAbstractConnectionFactory::Password

The password used for connections created from this factory.

See also

FPassword For reading

FPassword For writing

SendTimeOut

Integer TBTAbstractConnectionFactory::SendTimeOut

Send time out.

Note

Experimental feature.

See also

FSendTimeOut For reading

FSendTimeOut For writing

UserName

string TBTAbstractConnectionFactory::UserName

The userName used by connections created by this factory.

See also

FUserName For reading

FUserName For writing
