TBTConnection Class Reference

A Connection object is a client's active connection to its provider. More...

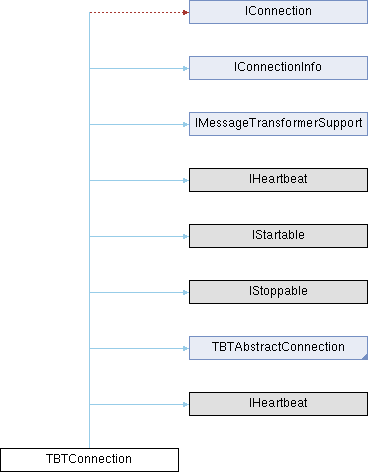

Inheritance diagram for TBTConnection:

Public Member Functions
TBTConnection	MakeConnection ()
	A static helper method to create a new connection.
TBTConnection	MakeConnection (const string UserName, const string Password, const string URL)
	A static helper method to create a new connection.
	TBTConnection (const TBTAbstractTransport Transport)
	~TBTConnection ()
Boolean	TransportConnected ()
	Is the transport layer connected?
string	StompSessionID ()
	Stomp session ID.
string	StompServerName ()
	Stomp server name.
TStompProtocolVersion	StompProtocolVersion ()
	Stomp protocol version of the current connection.
	Stop ()
	Temporarily stops a connection's delivery of incoming messages.
ISession	CreateSession (const Boolean Transacted, const TAcknowledgementMode AcknowledgementMode)
	Creates a new session to work on this connection, specifying transacted and acknowledgeMode.
ISession	CreateSession (const TAcknowledgementMode ASessionMode)
	Creates a new session to work on this connection, specifying sessionMode.
	SetDefaultClientID (const string Value)
	Sets the default client id that the connection will use if explicitly not set with the SetClientID call.
	SetTransformer (const IMessageTransformer Transformer)
	Set the message transformer.
	SetMapMessageTransformationId (const string ATransformationId)
	SetObjectMessageTransformationId (const string ATransformationId)
IMessageTransformer	GetTransformer ()
	Get the message transformer.
Public Member Functions inherited from TBTAbstractConnection
	TBTAbstractConnection (const TBTAbstractTransport Transport)
	Start ()
	Starts (or restarts) a connection's delivery of incoming messages.
	Close ()
	Closes the connection.

Public Attributes
string	ClientID
	The client identifier for this connection.
Public Attributes inherited from TBTAbstractConnection
Boolean	Closed
	Returns true if the connection is closed.
Boolean	Closing
	Returns true if the connection is in the process of being closed.
Integer	ConnectTimeOut
	Connect time out (in milliseconds)
Integer	SendTimeOut
	Send time out (in milliseconds).
Boolean	Started
	Returns True if this connection has been started.
TBTAbstractTransport	Transport
	The transport.

Protected Member Functions
	StartSessions ()
	AddSession (const ISession Session)
	RemoveSession (const ISession Session)
	CheckClientIDWasManuallySpecified ()
	Ensures that the ClientID was manually specified and not auto-generated.
	Dispose ()
	UnsubscribeDurable (const string Destination, const string Name)
	Unsubscribes a durable subscription that has been created by a client.
	SendHeartbeat ()
	Send a heartbeat signal (requires Stomp 1.1)
	CheckHeartbeat ()
	Check for server heartbeat signal (requires Stomp 1.1)
Boolean	ReceiveHeartbeat (Integer ATimeOut)
	Try to receive server heartbeat.
Protected Member Functions inherited from TBTAbstractConnection
	StartSessions ()
	Dispose ()
	CheckClosed ()
	Throws an exception if the Connection is already closed.
	CheckClosedOrFailed ()
	Throws an exception if the Connection is already closed or the transport has failed.

Detailed Description

A Connection object is a client's active connection to its provider.

A connection serves several purposes:

• It encapsulates an open connection with a message provider. It typically represents an open TCP/IP socket between a client and the service provider software.
• Its creation is where client authentication takes place.
• It can specify a unique client identifier.

Constructor & Destructor Documentation

TBTConnection()

TBTConnection::TBTConnection

(

const TBTAbstractTransport

Transport

)

~TBTConnection()

TBTConnection::~TBTConnection

(

)

Member Function Documentation

AddSession()

TBTConnection::AddSession ( const ISession Session )

protected

CheckClientIDWasManuallySpecified()

TBTConnection::CheckClientIDWasManuallySpecified ( )

protected

Ensures that the ClientID was manually specified and not auto-generated.

If the ClientID was not specified this method will throw an exception. This method is used to ensure that the ClientID + durableSubscriber name are used correctly.

CheckHeartbeat()

TBTConnection::CheckHeartbeat ( )

protected

Check for server heartbeat signal (requires Stomp 1.1)

Exceptions

ENoHeartbeat

if an expected server heartbeat was missing

CreateSession() [1/2]

ISession TBTConnection::CreateSession	(	const Boolean	Transacted,
		const TAcknowledgementMode	AcknowledgementMode )

Creates a new session to work on this connection, specifying transacted and acknowledgeMode.

Parameters

Transacted	- indicates whether the session is transacted
AcknowledgementMode	- indicates whether the consumer or the client will acknowledge any messages it receives.

Returns

new session

CreateSession() [2/2]

ISession TBTConnection::CreateSession

(

const TAcknowledgementMode

ASessionMode

)

Creates a new session to work on this connection, specifying sessionMode.

Parameters

ASessionMode

- indicates whether the consumer or the client will acknowledge any messages it receives.

Returns

new session

Dispose()

TBTConnection::Dispose ( )

protected

GetTransformer()

IMessageTransformer TBTConnection::GetTransformer

(

)

Get the message transformer.

MakeConnection() [1/2]

TBTConnection TBTConnection::MakeConnection

(

)

A static helper method to create a new connection.

MakeConnection() [2/2]

TBTConnection TBTConnection::MakeConnection	(	const string	UserName,
		const string	Password,
		const string	URL )

A static helper method to create a new connection.

ReceiveHeartbeat()

Boolean TBTConnection::ReceiveHeartbeat ( Integer ATimeOut )

protected

Try to receive server heartbeat.

Requires Stomp 1.1

Parameters

ATimeOut

timeout

Returns

True if a heartbeat signal was received

RemoveSession()

TBTConnection::RemoveSession ( const ISession Session )

protected

SendHeartbeat()

TBTConnection::SendHeartbeat ( )

protected

Send a heartbeat signal (requires Stomp 1.1)

SetDefaultClientID()

TBTConnection::SetDefaultClientID

(

const string

Value

)

Sets the default client id that the connection will use if explicitly not set with the SetClientID call.

SetMapMessageTransformationId()

TBTConnection::SetMapMessageTransformationId

(

const string

ATransformationId

)

SetObjectMessageTransformationId()

TBTConnection::SetObjectMessageTransformationId

(

const string

ATransformationId

)

SetTransformer()

TBTConnection::SetTransformer

(

const IMessageTransformer

Transformer

)

Set the message transformer.

StartSessions()

TBTConnection::StartSessions ( )

protected

StompProtocolVersion()

TStompProtocolVersion TBTConnection::StompProtocolVersion

(

)

Stomp protocol version of the current connection.

See also

IConnectionInfo

StompServerName()

string TBTConnection::StompServerName

(

)

Stomp server name.

See also

IConnectionInfo

StompSessionID()

string TBTConnection::StompSessionID

(

)

Stomp session ID.

See also

IConnectionInfo

Stop()

TBTConnection::Stop

(

)

Temporarily stops a connection's delivery of incoming messages.

Delivery can be restarted using the connection's Start method.

When the connection is stopped, delivery to all the connection's message consumers is inhibited: synchronous receives block, and messages are not delivered to message listeners.

TransportConnected()

Boolean TBTConnection::TransportConnected

(

)

Is the transport layer connected?

See also

IConnectionInfo

UnsubscribeDurable()

TBTConnection::UnsubscribeDurable ( const string Destination, const string Name )

protected

Unsubscribes a durable subscription that has been created by a client.

Parameters

Destination	- the destination name
Name	- the subscription name

Member Data Documentation

ClientID

string TBTConnection::ClientID

The client identifier for this connection.

The purpose of the client identifier is to associate a connection and its objects with a state maintained on behalf of the client by a provider. The only such state identified by the API is that required to support durable subscriptions.

See also

GetClientID For reading

SetClientID For writing
