TBTMessageProducer Class Reference

A client uses an IMessageProducer object to send messages to a destination. More...

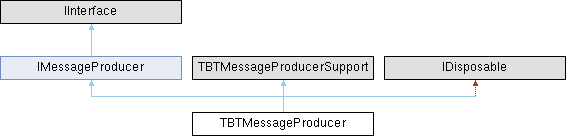

Inheritance diagram for TBTMessageProducer:

Public Member Functions
	TBTMessageProducer (const TBTSession Session, const IDestination Destination, const Integer SendTimeOut)
	Create MessageProducer.
	Close ()
	Closes the message producer.
	Dispose ()
	Send (const IDestination Destination, const IMessage Message)
	Sends a message to a destination for an unidentified message producer.
	Send (const IMessage Message)
	Sends a message using the MessageProducer's default delivery mode, priority, and time to live.
	Send (const IMessage Message, const TJMSDeliveryMode DeliveryMode, const Integer Priority, const Integer TimeToLive)
	Sends a message to the destination, specifying delivery mode, priority, and time to live.
	Send (const IDestination Destination, const IMessage Message, const TJMSDeliveryMode DeliveryMode, const Integer Priority, const Integer TimeToLive)
	Sends a message to a destination for an unidentified message producer, specifying delivery mode, priority and time to live.

Public Attributes
IDestination	Destination
	The destination associated with this MessageProducer.
Public Attributes inherited from IMessageProducer
TJMSDeliveryMode	DeliveryMode
	The delivery mode to use.
Integer	Priority
	The priority used for outgoing messages.
Cardinal	TimeToLive
	The outgoing message's lifetime (in milliseconds).

Protected Member Functions
	CheckClosed ()
	Check if the instance of this producer has been closed.

Detailed Description

A client uses an IMessageProducer object to send messages to a destination.

An IMessageProducer object is created by passing a IDestination object to a message-producer creation method supplied by a session.

MessageProducer is the parent interface for all message producers.

A client also has the option of creating a message producer without supplying a destination. In this case, a destination must be provided with every send operation. A typical use for this kind of message producer is to send replies to requests using the request's JMSReplyTo destination.

A client can specify a default delivery mode, priority, and time to live for messages sent by a message producer. It can also specify the delivery mode, priority, and time to live for an individual message.

A client can specify a time-to-live value in milliseconds for each message it sends. This value defines a message expiration time that is the sum of the message's time-to-live and the GMT when it is sent (for transacted sends, this is the time the client sends the message, not the time the transaction is committed).

Constructor & Destructor Documentation

TBTMessageProducer()

TBTMessageProducer::TBTMessageProducer	(	const TBTSession	Session,
		const IDestination	Destination,
		const Integer	SendTimeOut )

Create MessageProducer.

Member Function Documentation

CheckClosed()

TBTMessageProducer::CheckClosed ( )

protected

Check if the instance of this producer has been closed.

Exceptions

IllegalStateException

Close()

TBTMessageProducer::Close

(

)

Closes the message producer.

Exceptions

EMQException

if the provider fails to close the producer due to some internal error.

Implements IMessageProducer.

Dispose()

TBTMessageProducer::Dispose

(

)

Send() [1/4]

TBTMessageProducer::Send	(	const IDestination	Destination,
		const IMessage	Message )

Sends a message to a destination for an unidentified message producer.

Uses the MessageProducer's default delivery mode, priority, and time to live.

Typically, a message producer is assigned a destination at creation time; however, the API also supports unidentified message producers, which require that the destination be supplied every time a message is sent.

Parameters

Destination	the destination to send this message to
Message	the message to send

Exceptions

EMQException

if the provider fails to send the message due to some internal error.

Implements IMessageProducer.

Send() [2/4]

TBTMessageProducer::Send	(	const IDestination	Destination,
		const IMessage	Message,
		const TJMSDeliveryMode	DeliveryMode,
		const Integer	Priority,
		const Integer	TimeToLive )

Sends a message to a destination for an unidentified message producer, specifying delivery mode, priority and time to live.

Typically, a message producer is assigned a destination at creation time; however, the API also supports unidentified message producers, which require that the destination be supplied every time a message is sent.

Parameters

Destination	the destination to send this message to
Message	the message to send
DeliveryMode	the delivery mode to use
Priority	the priority for this message
TimeToLive	the message's lifetime (in milliseconds)

Exceptions

EMQException

if the provider fails to send the message due to some internal error.

Implements IMessageProducer.

Send() [3/4]

TBTMessageProducer::Send

(

const IMessage

Message

)

Sends a message using the MessageProducer's default delivery mode, priority, and time to live.

Parameters

Message

the message to send

Exceptions

EMQException

if the provider fails to send the message due to some internal error.

Implements IMessageProducer.

Send() [4/4]

TBTMessageProducer::Send	(	const IMessage	Message,
		const TJMSDeliveryMode	DeliveryMode,
		const Integer	Priority,
		const Integer	TimeToLive )

Sends a message to the destination, specifying delivery mode, priority, and time to live.

Parameters

Message	the message to send
DeliveryMode	the delivery mode to use
Priority	the priority for this message
TimeToLive	the message's lifetime (in milliseconds)

Exceptions

EMQException

if the provider fails to send the message due to some internal error.

Implements IMessageProducer.

Member Data Documentation

Destination

IDestination TBTMessageProducer::Destination

The destination associated with this MessageProducer.

See also

GetDestination For reading
