TBTMQContext Class Reference

This interface represents a messaging context. More...

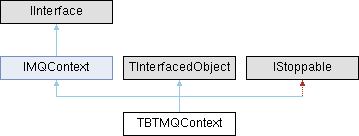

Inheritance diagram for TBTMQContext:

Public Member Functions
	TBTMQContext (const IConnection Connection)
	Constructor.
	TBTMQContext (const IConnection Connection, const TAcknowledgementMode AcknowledgeMode)
	Constructor.

Protected Member Functions
	Close ()
	Closes the context.
	Commit ()
	Commits the context.
IQueueBrowser	CreateBrowser (const string QueueName)
	Creates an IQueueBrowser object to peek at the messages on the specified queue.
IBytesMessage	CreateBytesMessage ()
	Creates a new binary message.
IMQConsumer	CreateConsumer (const IDestination Destination)
	Creates an IMQConsumer for the specified destination.
IMQConsumer	CreateConsumer (const IDestination Destination, const string MessageSelector)
	Creates an IMQConsumer for the specified destination, using a message selector.
ITopicSubscriber	CreateDurableSubscriber (const ITopic Topic, const string Name)
	Creates a durable subscriber to the specified topic.
ITopicSubscriber	CreateDurableSubscriber (const ITopic Topic, const string Name, const string MessageSelector)
	Creates a durable subscriber to the specified topic, using a message selector.
IMapMessage	CreateMapMessage ()
	Creates a new map message.
IObjectMessage	CreateObjectMessage ()
	Creates a new object message.
IObjectMessage	CreateObjectMessage (const TObject AObject)
	Creates a new object message with the given object.
IMQProducer	CreateProducer ()
	Creates a Producer object which can be used to configure and send messages.
IQueue	CreateQueue (const string QueueName)
	Creates a Queue object which encapsulates a specified provider-specific queue name.
ITemporaryQueue	CreateTemporaryQueue ()
	Creates an ITemporaryQueue object.
ITemporaryTopic	CreateTemporaryTopic ()
	Creates an ITemporaryTopic object.
ITextMessage	CreateTextMessage ()
	Creates a new text message with an empty body.
ITextMessage	CreateTextMessage (const string Text)
	Creates a new text message with the given body.
ITopic	CreateTopic (const string TopicName)
	Creates an ITopic object which encapsulates a specified provider-specific topic name.
TAcknowledgementMode	GetAcknowledgeMode ()
	Returns the acknowledgement mode of the context.
string	GetClientID ()
	Returns the client id.
Boolean	GetTransacted ()
	Indicates whether the session is in transacted mode.
	Rollback ()
	Rolls back the context.
	Start ()
	Starts the context.
	Stop ()
	Stops the context.
	Unsubscribe (const string Destination, const string Name)
	Unsubscribes a durable subscription that has been created by a client.
IMessageTransformer	GetTransformer ()
	SetTransformer (const IMessageTransformer Transformer)
	SetMapMessageTransformationId (const string ATransformationId)
	SetObjectMessageTransformationId (const string ATransformationId)
	SendHeartbeat ()
	CheckHeartbeat ()
Boolean	ReceiveHeartbeat (Integer ATimeOut)
Boolean	TransportConnected ()
string	StompSessionID ()
string	StompServerName ()
TStompProtocolVersion	StompProtocolVersion ()

Detailed Description

This interface represents a messaging context.

Constructor & Destructor Documentation

TBTMQContext() [1/2]

TBTMQContext::TBTMQContext

(

const IConnection

Connection

)

Constructor.

TBTMQContext() [2/2]

TBTMQContext::TBTMQContext	(	const IConnection	Connection,
		const TAcknowledgementMode	AcknowledgeMode )

Constructor.

Member Function Documentation

CheckHeartbeat()

TBTMQContext::CheckHeartbeat ( )

protected

Close()

TBTMQContext::Close ( )

protected

Closes the context.

Implements IMQContext.

Commit()

TBTMQContext::Commit ( )

protected

Commits the context.

Implements IMQContext.

CreateBrowser()

IQueueBrowser TBTMQContext::CreateBrowser ( const string QueueName )

protected

Creates an IQueueBrowser object to peek at the messages on the specified queue.

Implements IMQContext.

CreateBytesMessage()

IBytesMessage TBTMQContext::CreateBytesMessage ( )

protected

Creates a new binary message.

Implements IMQContext.

CreateConsumer() [1/2]

IMQConsumer TBTMQContext::CreateConsumer ( const IDestination Destination )

protected

Creates an IMQConsumer for the specified destination.

Parameters

Destination

the IDestination to access

Returns

the consumer

Implements IMQContext.

CreateConsumer() [2/2]

IMQConsumer TBTMQContext::CreateConsumer ( const IDestination Destination, const string MessageSelector )

protected

Creates an IMQConsumer for the specified destination, using a message selector.

Parameters

Destination	the IDestination to access
MessageSelector	only messages with properties matching the message selector expression are delivered. An empty string indicates that there is no message selector for the message consumer.

Returns

the consumer

Note

MessageSelector is not supported by RabbitMQ

Implements IMQContext.

CreateDurableSubscriber() [1/2]

ITopicSubscriber TBTMQContext::CreateDurableSubscriber ( const ITopic Topic, const string Name )

protected

Creates a durable subscriber to the specified topic.

Parameters

Topic	the ITopic to access
Name	the name used to identify this subscription

Returns

the durable subscriber

Implements IMQContext.

CreateDurableSubscriber() [2/2]

ITopicSubscriber TBTMQContext::CreateDurableSubscriber ( const ITopic Topic, const string Name, const string MessageSelector )

protected

Creates a durable subscriber to the specified topic, using a message selector.

Parameters

Topic	the ITopic to access
Name	the name used to identify this subscription
MessageSelector	only messages with properties matching the message selector expression are delivered. An empty string indicates that there is no message selector for the message consumer.

Returns

the durable subscriber

Note

MessageSelector is not supported by RabbitMQ

Implements IMQContext.

CreateMapMessage()

IMapMessage TBTMQContext::CreateMapMessage ( )

protected

Creates a new map message.

Implements IMQContext.

CreateObjectMessage() [1/2]

IObjectMessage TBTMQContext::CreateObjectMessage ( )

protected

Creates a new object message.

Implements IMQContext.

CreateObjectMessage() [2/2]

IObjectMessage TBTMQContext::CreateObjectMessage ( const TObject AObject )

protected

Creates a new object message with the given object.

Implements IMQContext.

CreateProducer()

IMQProducer TBTMQContext::CreateProducer ( )

protected

Creates a Producer object which can be used to configure and send messages.

Implements IMQContext.

CreateQueue()

IQueue TBTMQContext::CreateQueue ( const string QueueName )

protected

Creates a Queue object which encapsulates a specified provider-specific queue name.

Implements IMQContext.

CreateTemporaryQueue()

ITemporaryQueue TBTMQContext::CreateTemporaryQueue ( )

protected

Creates an ITemporaryQueue object.

Its lifetime will be that of the IConnection unless it is deleted earlier.

Implements IMQContext.

CreateTemporaryTopic()

ITemporaryTopic TBTMQContext::CreateTemporaryTopic ( )

protected

Creates an ITemporaryTopic object.

Its lifetime will be that of the IConnection unless it is deleted earlier.

Implements IMQContext.

CreateTextMessage() [1/2]

ITextMessage TBTMQContext::CreateTextMessage ( )

protected

Creates a new text message with an empty body.

Implements IMQContext.

CreateTextMessage() [2/2]

ITextMessage TBTMQContext::CreateTextMessage ( const string Text )

protected

Creates a new text message with the given body.

Implements IMQContext.

CreateTopic()

ITopic TBTMQContext::CreateTopic ( const string TopicName )

protected

Creates an ITopic object which encapsulates a specified provider-specific topic name.

Implements IMQContext.

GetAcknowledgeMode()

TAcknowledgementMode TBTMQContext::GetAcknowledgeMode ( )

protected

Returns the acknowledgement mode of the context.

Implements IMQContext.

GetClientID()

string TBTMQContext::GetClientID ( )

protected

Returns the client id.

Implements IMQContext.

GetTransacted()

Boolean TBTMQContext::GetTransacted ( )

protected

Indicates whether the session is in transacted mode.

Implements IMQContext.

GetTransformer()

IMessageTransformer TBTMQContext::GetTransformer ( )

protected

ReceiveHeartbeat()

Boolean TBTMQContext::ReceiveHeartbeat ( Integer ATimeOut )

protected

Rollback()

TBTMQContext::Rollback ( )

protected

Rolls back the context.

Implements IMQContext.

SendHeartbeat()

TBTMQContext::SendHeartbeat ( )

protected

SetMapMessageTransformationId()

TBTMQContext::SetMapMessageTransformationId ( const string ATransformationId )

protected

SetObjectMessageTransformationId()

TBTMQContext::SetObjectMessageTransformationId ( const string ATransformationId )

protected

SetTransformer()

TBTMQContext::SetTransformer ( const IMessageTransformer Transformer )

protected

Start()

TBTMQContext::Start ( )

protected

Starts the context.

Implements IMQContext.

StompProtocolVersion()

TStompProtocolVersion TBTMQContext::StompProtocolVersion ( )

protected

StompServerName()

string TBTMQContext::StompServerName ( )

protected

StompSessionID()

string TBTMQContext::StompSessionID ( )

protected

Stop()

TBTMQContext::Stop ( )

protected

Stops the context.

Implements IMQContext.

TransportConnected()

Boolean TBTMQContext::TransportConnected ( )

protected

Unsubscribe()

TBTMQContext::Unsubscribe ( const string Destination, const string Name )

protected

Unsubscribes a durable subscription that has been created by a client.

Implements IMQContext.
