TBTAbstractConnectionFactory Class Reference

Encapsulates a set of connection configuration parameters that has been defined by an administrator. More...

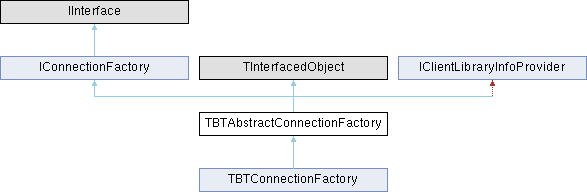

Inheritance diagram for TBTAbstractConnectionFactory:

Public Member Functions
IConnection	CreateConnection ()
	Creates a connection with the default user identity.
IConnection	CreateConnection (const string UserName, const string Password)
	Creates a connection with the specified user identity.
IMQContext	CreateContext ()
	Creates a messaging context with default settings.
IMQContext	CreateContext (const TAcknowledgementMode AcknowledgeMode)
	Creates a messaging context with the specified acknowledgment mode.
IMQContext	CreateContext (const string Username, const string Password)
	Creates a messaging context with the specified user credentials.
IMQContext	CreateContext (const string Username, const string Password, const TAcknowledgementMode AcknowledgeMode)
	Creates a messaging context with the specified user credentials and acknowledgment mode.
	TBTAbstractConnectionFactory ()
	TBTAbstractConnectionFactory (const string BrokerURL)
	TBTAbstractConnectionFactory (const string UserName, const string Password, const string BrokerURL)
TBTConnection	CreateMQConnection ()
	Creates a connection with the default user identity.
TBTConnection	CreateMQConnection (const string UserName, const string Password)
	Creates a connection with the specified user identity.

Public Attributes
string	ClientID
	Specifies the client ID to be used for the created connection.
Integer	ConnectTimeOut
	Specifies the connection timeout in milliseconds.
string	UserName
	Specifies the username to be used by connections created by this factory.
string	Password
	Specifies the password to be used by connections created by this factory.
string	BrokerURL
	Specifies the connection URL used to connect to the broker.
Integer	SendTimeOut
	Specifies the send timeout in milliseconds.

Protected Member Functions
TBTAbstractTransport	CreateTransport ()
IClientLibraryInfo	ClientLibraryInfo ()
	Retrieves an IClientLibraryInfo instance.

Detailed Description

Encapsulates a set of connection configuration parameters that has been defined by an administrator.

A client uses it to create a connection with a provider.

A connection factory instance is usually created and configured only once.

It then may be used to create actual connection objects when needed. For example, a worker thread may create the connection factory at program start-up and use it to create a new connection object whenever a connection failure occurred.

The TBTAbstractConnectionFactory introduces configuration properties which are only needed at the time of instantiation. They are intentionally not part of the IConnectionFactory methods.

---

function TExample.CreateConfiguredFactory: IConnectionFactory;
var
  Factory: TBTConnectionFactory;
begin
  // ------------------------------------------------------------
  // create and assign to local variable
  // ------------------------------------------------------------
  Factory := TBTConnectionFactory.Create;

  // ------------------------------------------------------------
  // additional configuration
  // ------------------------------------------------------------
  Factory.BrokerURL := 'broker.example.com';
  Factory.UserName := 'guest';
  Factory.Password := 'guest';
  Factory.ClientID := 'myclientId';
  Factory.SendTimeOut := 10000;
  Factory.ConnectTimeOut := 10000;

  // ------------------------------------------------------------
  // return the configured factory
  // ------------------------------------------------------------
  Result := Factory;
end;

Constructor & Destructor Documentation

TBTAbstractConnectionFactory() [1/3]

TBTAbstractConnectionFactory::TBTAbstractConnectionFactory

(

)

TBTAbstractConnectionFactory() [2/3]

TBTAbstractConnectionFactory::TBTAbstractConnectionFactory

(

const string

BrokerURL

)

TBTAbstractConnectionFactory() [3/3]

TBTAbstractConnectionFactory::TBTAbstractConnectionFactory	(	const string	UserName,
		const string	Password,
		const string	BrokerURL )

Member Function Documentation

ClientLibraryInfo()

IClientLibraryInfo TBTAbstractConnectionFactory::ClientLibraryInfo ( )

protected

Retrieves an IClientLibraryInfo instance.

Returns

An IClientLibraryInfo instance containing details such as the library name, version, and copyright information.

Implements IClientLibraryInfoProvider.

CreateConnection() [1/2]

IConnection TBTAbstractConnectionFactory::CreateConnection

(

)

Creates a connection with the default user identity.

The connection is created in a stopped mode, meaning no messages will be delivered until the Connection.Start method is explicitly called.

Returns

An IConnection object representing the created connection.

Implements IConnectionFactory.

CreateConnection() [2/2]

IConnection TBTAbstractConnectionFactory::CreateConnection	(	const string	Username,
		const string	Password )

Creates a connection with the specified user identity.

The connection is created in a stopped mode, meaning no messages will be delivered until the Connection.Start method is explicitly called.

Parameters

Username	The username for the connection.
Password	The password for the connection.

Returns

An IConnection object representing the created connection.

Implements IConnectionFactory.

CreateContext() [1/4]

IMQContext TBTAbstractConnectionFactory::CreateContext

(

)

Creates a messaging context with default settings.

Returns

An IMQContext instance representing the created context.

Implements IConnectionFactory.

CreateContext() [2/4]

IMQContext TBTAbstractConnectionFactory::CreateContext	(	const string	Username,
		const string	Password )

Creates a messaging context with the specified user credentials.

Parameters

Username	The username for the context.
Password	The password for the context.

Returns

An IMQContext instance representing the created context.

Implements IConnectionFactory.

CreateContext() [3/4]

IMQContext TBTAbstractConnectionFactory::CreateContext	(	const string	Username,
		const string	Password,
		const TAcknowledgementMode	AcknowledgeMode )

Creates a messaging context with the specified user credentials and acknowledgment mode.

Parameters

Username	The username for the context.
Password	The password for the context.
AcknowledgeMode	The acknowledgment mode for the context.

Returns

An IMQContext instance representing the created context.

Implements IConnectionFactory.

CreateContext() [4/4]

IMQContext TBTAbstractConnectionFactory::CreateContext

(

const TAcknowledgementMode

AcknowledgeMode

)

Creates a messaging context with the specified acknowledgment mode.

Parameters

AcknowledgeMode

The acknowledgment mode for the context.

Returns

An IMQContext instance representing the created context.

Implements IConnectionFactory.

CreateMQConnection() [1/2]

TBTConnection TBTAbstractConnectionFactory::CreateMQConnection

(

)

Creates a connection with the default user identity.

The connection is created in a stopped mode, meaning no messages will be delivered until the Connection.Start method is explicitly called.

Returns

A TBTConnection instance representing the created connection.

CreateMQConnection() [2/2]

TBTConnection TBTAbstractConnectionFactory::CreateMQConnection	(	const string	UserName,
		const string	Password )

Creates a connection with the specified user identity.

The connection is created in a stopped mode, meaning no messages will be delivered until the Connection.Start method is explicitly called.

Parameters

UserName	The username for the connection.
Password	The password for the connection.

Returns

A TBTConnection instance representing the created connection.

CreateTransport()

TBTAbstractTransport TBTAbstractConnectionFactory::CreateTransport ( )

protected

Member Data Documentation

BrokerURL

string TBTAbstractConnectionFactory::BrokerURL

Specifies the connection URL used to connect to the broker.

This URL defines the protocol, host, port, and optionally the username and password for the connection.

See also

GetBrokerURL For reading

SetBrokerURL For writing

ClientID

string TBTAbstractConnectionFactory::ClientID

Specifies the client ID to be used for the created connection.

Note

This property can only be used by one connection at a time. It is generally recommended to set the client ID directly on a TBTConnection instance instead.

Todo

update / clarify documentation

See also

FClientID For reading

FClientID For writing

ConnectTimeOut

Integer TBTAbstractConnectionFactory::ConnectTimeOut

Specifies the connection timeout in milliseconds.

Note

This is an experimental feature and is only implemented in Internet Direct (Indy).

Todo

update / clarify documentation

See also

FConnectTimeOut For reading

SetConnectTimeOut For writing

Password

string TBTAbstractConnectionFactory::Password

Specifies the password to be used by connections created by this factory.

See also

FPassword For writing

SendTimeOut

Integer TBTAbstractConnectionFactory::SendTimeOut

Specifies the send timeout in milliseconds.

Note

This is an experimental feature.

Todo

update / clarify documentation

See also

FSendTimeOut For reading

FSendTimeOut For writing

UserName

string TBTAbstractConnectionFactory::UserName

Specifies the username to be used by connections created by this factory.

See also

FUserName For writing
